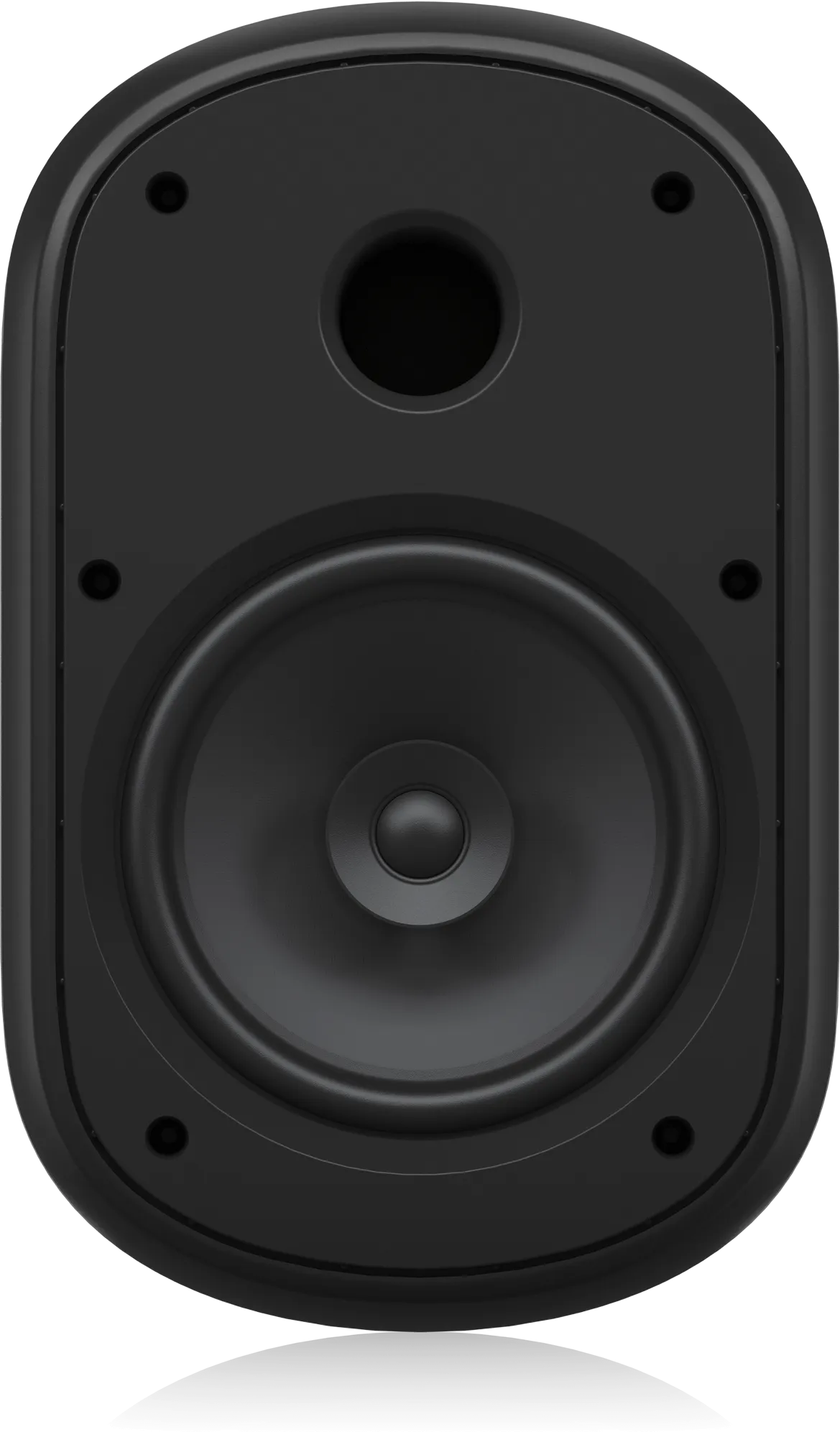

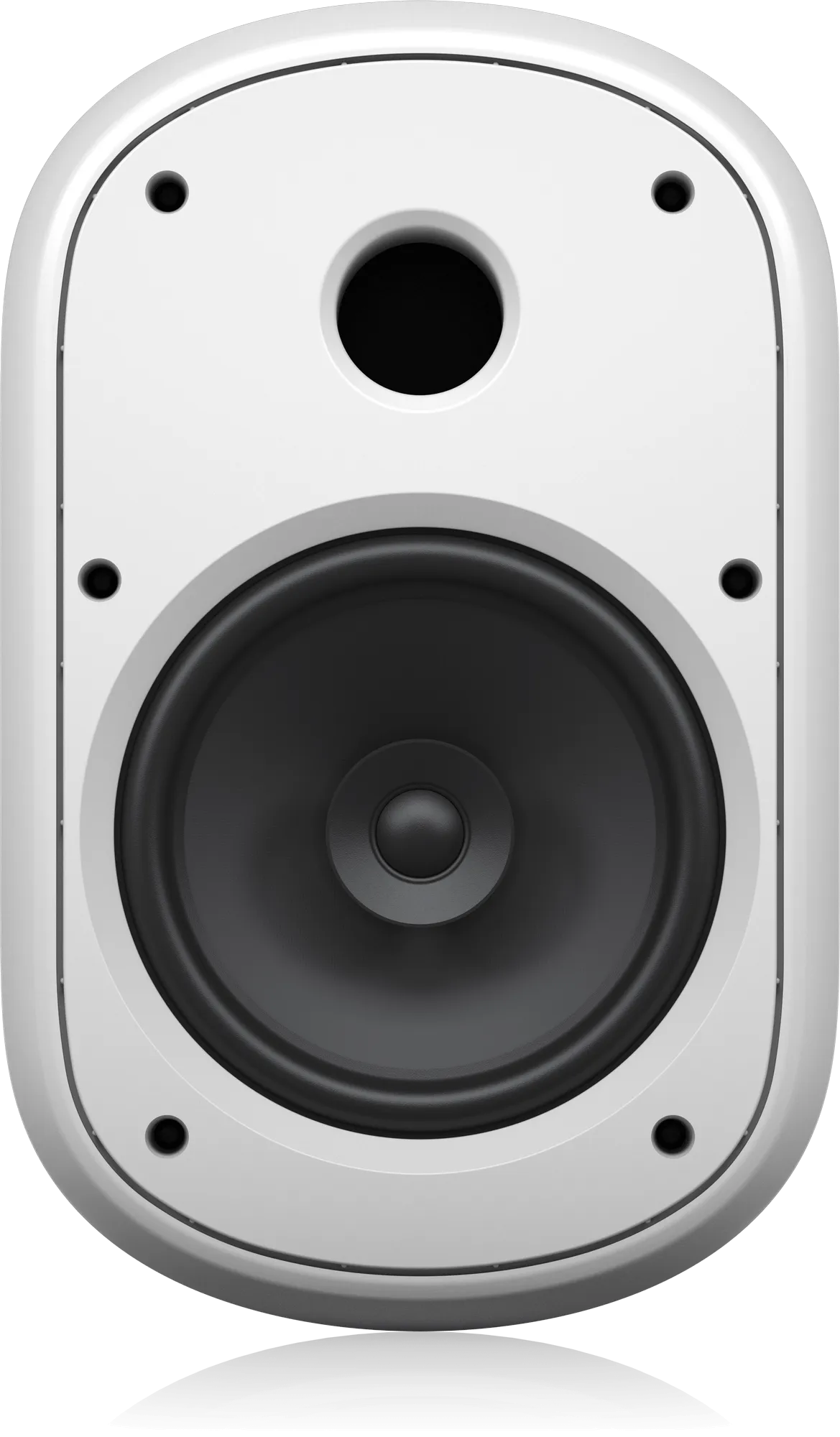

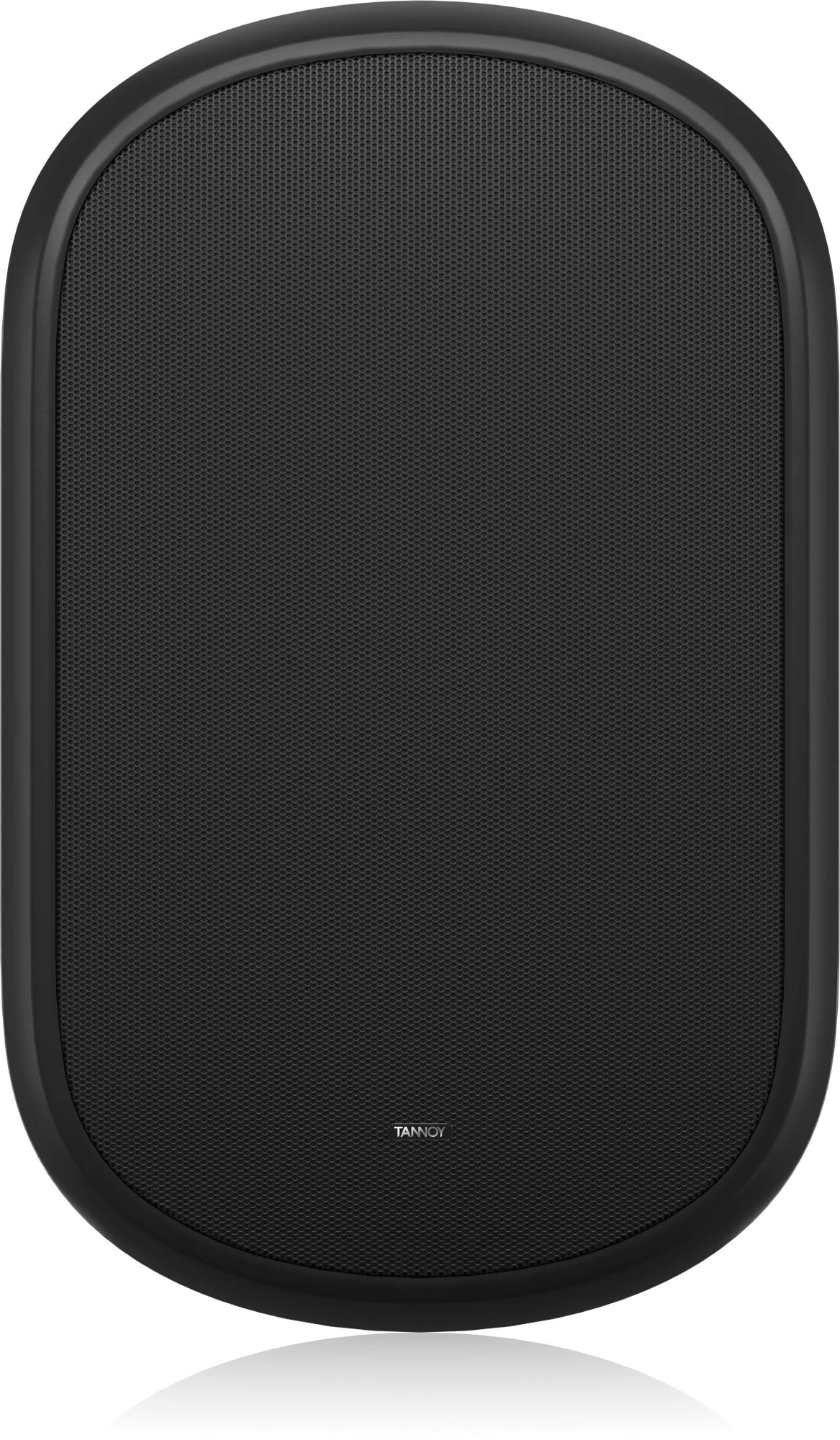

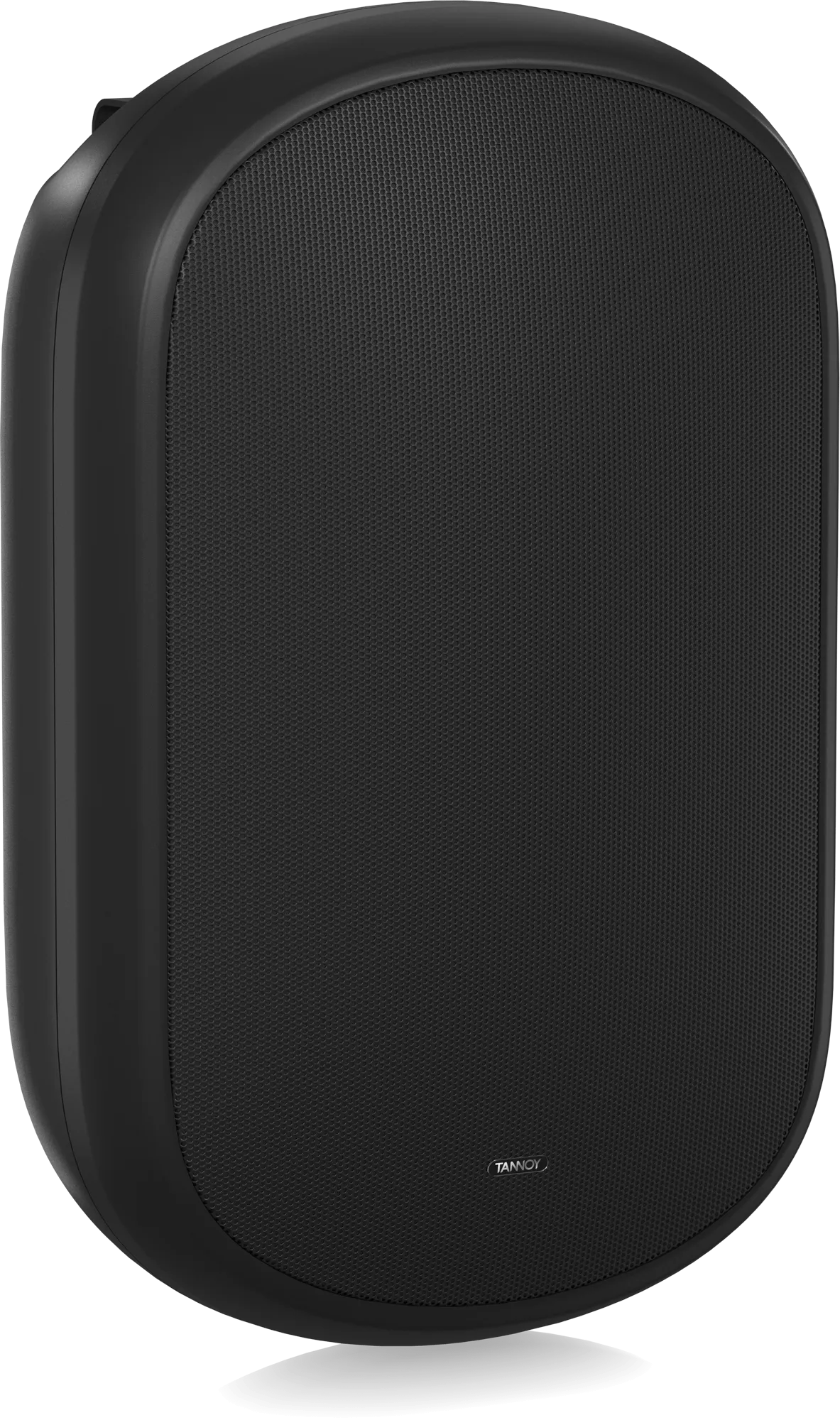

Tannoy DVS 801



DVS 1.0 SERIES DVS 801


The DVS 801 is a coaxial surface-mount loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the DVS 801 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 801 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling.

Exceptional Sound and Reliability


The design comprises a 200 mm (8.00") polypropylene full-range driver and 1.00" ferrofluid cooled soft dome high frequency driver mounted in a UV and weather resistant UL 94-V0 ABS enclosure. Dust protection is provided in the form of an attractive aluminium mesh grille. The paper cone material and butyl rubber surround enhance durability and long-term reliability. DVS 801 is specifically designed for applications requiring the combination of excellent music and speech sound quality and exceptional reliability


Weather-Resistant Enclosure

The elegantly styled semi-matt black moulded enclosure blends beautifully into any décor. Additionally, the DVS 801 design and performance has achieving an IP64 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, health suites, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.



Specifications:
Frequency response (-3 dB) 85 Hz - 20 kHz
Frequency response (-10 dB) 75 Hz - 20 kHz
System sensitivity (1 W @ 1 m) 88 ± 2 dB
Dispersion (-6 dB) 82 degrees conical averaged 1 kHz - 10 kHz
Transducers Coaxial
Low frequency 200 mm (8.00") paper cone with coating
High frequency 25 mm (1')
Crossover
3500 Hz ± 10%
Directivity (Q) 5.7 averaged 1 kHz to 10 kHz
Directivity (DI) 7.2 averaged 1 kHz to 10 kHz
Rated maximum SPL 106 dB (average) 112 dB (peak)
Transformer taps

70 V -  60 W / 30 W / 15 W / 7.5 W / OFF and LOZ low impedance operation

100 V -  X / 60 W / 30 W / 15 W / OFF and LOZ low impedance operation

Average

30 W

Programme

120 W

Peak

240 W

Recommended amplifier power

120 W @ 8 Ohms

Nominal impedance

8 Ohms
